FT-65FGM3525 DC 3-24v High Torque Slow Speed Motor Customized For Home Appliances

Name: FT65FGM3525 DC 324v High Torque Slow Speed Motor Customized For Home Appliances
Brand: FUTENG
Price: 1 USD

Wholesale FT-65FGM3525 DC 3-24v High Torque Slow Speed Motor Customized For Home Appliances from china suppliers

Model Number : FT-65FGM3525

Brand Name : FUTENG

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Certification : CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 8000 0000

Delivery Time : 15-30 days/Negotiable

Packaging Details : Standard Export Carton & Customzied

Continuous Current(A) : about 430mA-2500mA

Efficiency : 59%-73%

Commutation : Brush

Construction : Permanent Magnet

Torque : 18-25000 g.cm, 20/30/20/50(g.cm)

Type : Gear Motor

Usage : Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty : 3 months ~ 1 year

Geared motor model : FT-65FGM3525

Gear box size : 65*38mm

Voltage : 3-24V

Speed : 5rpm-2000rpm

Rotating speed : 3000/6000/11000/6000(rpm)

Current : 40/50/150/30(mA)

Output : 0.9/3.24/4.42/4.8(w)

Name : High Torque Slow Speed Motor

Contact Now

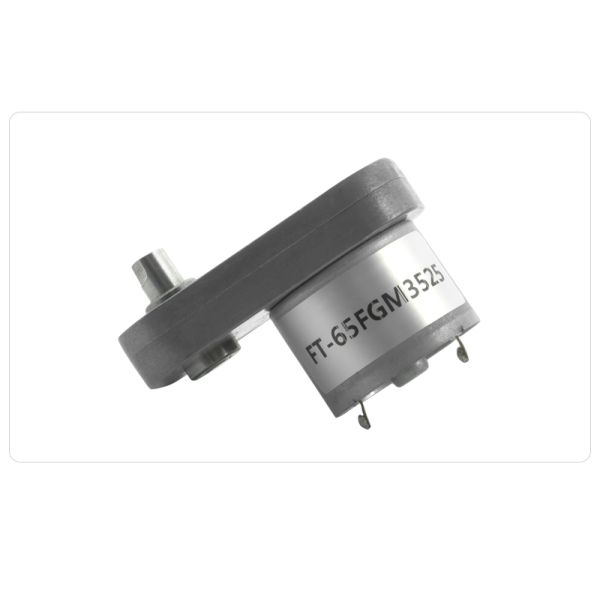

FT-65FGM3525 Custom DC 3-24v High Torque Slow Speed Flat Gear Motor For Home Appliances

FT MOTOR

FT MOTOR Geared motor model: FT-65FGM3525 Gearbox diameter: Ø65*38mm Voltage: 3-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

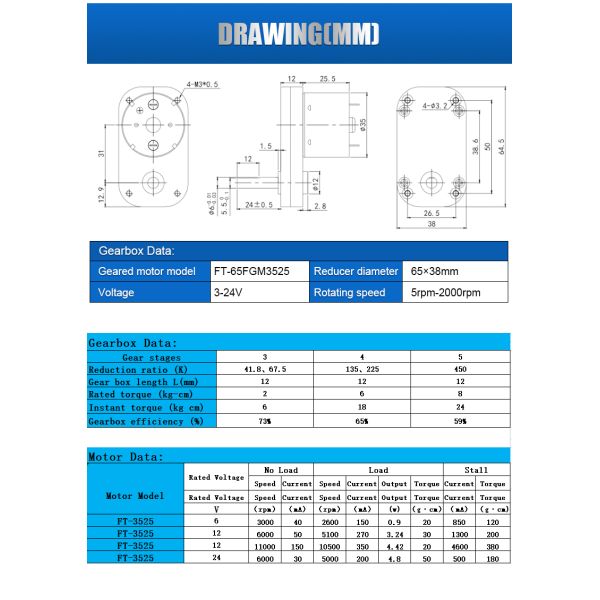

Gearbox Data:
Gear stage	3	4	5
Reduction ratio (K)	41.8,67.5	135,225	450
Gear box length L(mm)	12	12	12
Rated torque (kg·cm)	2	6	8
Instant torque (kg·cm)	6	18	24
Gearbox efficiency (%)	73%	65%	59%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-3525	6	3000	40	2600	150	0.9	20	850	120
FT-3525	12	6000	50	5100	270	3.24	30	1300	200
FT-3525	12	11000	150	10500	350	4.42	20	4600	380
FT-3525	24	6000	30	5000	200	4.8	50	500	180

FT-65FGM3525 DC 3-24v High Torque Slow Speed Motor Customized For Home Appliances
